New Bioengineered Patch Makes Its Personal Oxygen to Heal Wounds and Develop Tissue

Researchers from UC Riverside, and Rowan College have developed a bioengineered patch that generates its personal oxygen provide, tackling one in every of tissue engineering’s oldest unsolved issues.

The research additionally noticed contributions from UC Berkeley, Tarleton State College in Texas, the Terasaki Institute for Biomedical Innovation in Los Angeles.

Revealed in Communications Supplies, the work describes a platform the staff calls a sensible self-oxygenating tissue system (SSOT). It really works by operating a small electrical present via a specifically designed gel that incorporates water, splitting water molecules into oxygen and hydrogen via electrolysis. The oxygen is launched immediately into the encompassing tissue, on demand, with out counting on the bloodstream.

That issues as a result of cells can solely survive if a blood vessel is inside about 100 to 200 μm of them, roughly the width of two human hairs. In skinny tissue samples, oxygen diffuses via naturally. However constructing tissue thick sufficient to be clinically helpful, the sort that might in the future substitute for a broken organ or restore a big wound, means cells within the inside are too removed from any vessel to outlive.

Each strategy tried up to now, together with oxygen-carrying molecules, porous scaffolds, and development elements that stimulate new vessel formation, has did not maintain cells reliably via that crucial window earlier than new vasculature establishes itself.

Engineering Oxygen From Inside

The SSOT sidesteps this by producing oxygen contained in the scaffold itself. The gel combines GelMA and a bio-ionic liquid constituted of choline, a nutrient the physique naturally produces. Collectively they kind a conductive, adhesive hydrogel the staff calls BioGel, which acts as each the electrolyte that carries the present and the atmosphere during which cells dwell and develop.

As detailed within the research, the electrode that drives the response is available in two variations. One makes use of platinum, a dependable and well-studied materials for this type of electrochemical work. The opposite makes use of a composite electrode constituted of cobalt phosphate, a clay-like mineral referred to as Laponite, and GelMA, formulated particularly so it may be 3D printed into customized shapes utilizing an extrusion bioprinter.

That printability might finally enable clinicians to tailor electrode geometry to the precise contours of a affected person’s wound or implant web site.

The choline-derived bio-ionic liquid contributes greater than conductivity. Including it at a 4% focus greater than doubled the gel’s stiffness in comparison with plain GelMA, and it dramatically slowed enzymatic breakdown. Plain GelMA misplaced greater than 90% of its mass to a collagen-digesting enzyme inside three days, and the BioGel formulation misplaced solely about 25% over a full week underneath the identical situations.

Molecular simulations helped clarify why the bio-ionic liquid additionally improves oxygen supply: the choline molecules cut back how strongly oxygen sticks to the platinum floor, pushing extra of it outward into the tissue.

Placing the Platform to the Take a look at

In laboratory cell tradition assessments, the staff embedded three completely different human cell varieties in SSOT constructs and uncovered them to extreme oxygen deprivation, roughly equal to situations deep inside a thick tissue implant.

After two weeks, cell survival charges within the SSOT group ranged from 74 to 79% relying on cell sort. With out the oxygen-generating system, survival dropped to between 38 and 46%. The platform additionally elevated secretion of a protein referred to as VEGF, which the physique makes use of to sign the expansion of latest blood vessels.

The researchers then implanted SSOT constructs underneath the pores and skin of rats to evaluate how the physique responds to the system. After 28 days, immune response was minimal and infiltration of macrophages, the cells that usually sign rejection of a overseas materials, was low. That outcome issues significantly for any system supposed for long-term implantation.

Nevertheless, essentially the most revealing assessments got here from animal wound therapeutic trials. The staff examined SSOT patches on diabetic mice engineered to develop continual, non-healing wounds by suppressing two key antioxidant enzymes on the time of harm, permitting micro organism naturally current on the pores and skin to ascertain persistent infections.

These wounds didn’t heal on their very own and in untreated animals continued to worsen all through the remark interval. Mice handled with battery-powered SSOT patches confirmed vital wound closure inside 33 days, with tissue evaluation confirming organized collagen formation and correct pores and skin layer regeneration relatively than scar tissue.

Whether or not the platform can clear the substantial hurdles of human scientific trials stays to be seen. The system operates at simply 1 Volt and maintained steady electrochemical efficiency over 30 days of on-off biking, however testing in bigger animals and finally people lies forward. As a proof of idea, it presents a technically credible reply to an issue that has constrained tissue engineering for many years.

Titled “A wise self-oxygenating system for localized and sustained oxygen supply in bioengineered tissue constructs,” the research was carried out by Vaishali Krishnadoss, Baishali Kanjilal, Aihik Banerjee, Prince David Okoro, Mohammad Khavani, Proma Basu, Nourouddin Sharifi, Johnson V. John, Manuela Martins-Inexperienced, Amos Mugweru, Mohammad R. Ok. Mofrad, Arameh Masoumi, and Iman Noshadi.

3D Printing Business is inviting audio system for its 2026 Additive Manufacturing Purposes (AMA) collection, masking Power, Healthcare, Automotive and Mobility, Aerospace, Area and Protection, and Software program. Every on-line occasion focuses on actual manufacturing deployments, qualification, and provide chain integration. Practitioners all for contributing can full the decision for audio system kind right here.

To remain updated with the newest 3D printing information, don’t overlook to subscribe to the 3D Printing Business e-newsletter or observe us on LinkedIn.

Discover the total Way forward for 3D Printing and Govt Survey collection from 3D Printing Business, that includes views from CEOs, engineers, and trade leaders on the industrialization of additive manufacturing, 3D printing trade tendencies 2026, qualification, provide chains, and additive manufacturing trade evaluation.

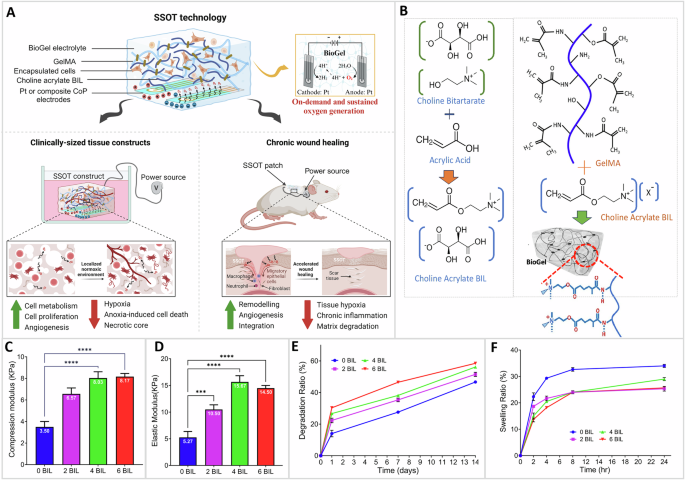

Featured picture exhibits characterization of the SSOT know-how and its perform in tissue engineering. Picture by way of Vaishali Krishnadoss et al., Communications Supplies.
