To begin off, listed here are the supplies and instruments that this undertaking wanted:

Supplies:

A design to comply with – I’ll get into extra element on what you want for this.

• Acrylic sheet – That is the background for the signal. The acrylic makes the neon look likes it’s floating and offers it extra depth, however you can simply as simply use a sheet of plywood as a substitute.
• Printed brackets – I made a pair primary brackets at particular angles and a few brackets in a selected form to carry the neon lights.
• Neon LED lights – It’s like rope lights however higher! Due to how they’re designed, you get a significantly better subtle mild, so you may’t even inform these are simply comprised of a bunch of LEDs. Enormous tip: don’t get AC powered Neon LEDs. In what I discovered, AC powered lights solely can help you reduce them each 20 inches; reduce between there and also you get a protracted lifeless part. DC powered LEDs had quite a lot of reduce lengths, but it surely was lots simpler to search out one I might reduce each inch. This is the precise itemizing I bought from for this undertaking.
• Energy provide -The outline of the Neon LEDs had a really helpful one, so I went with that; 12V 120W.

Instruments:

• Sizzling glue gun/sizzling glue – To stick the brackets to the acrylic. This will not work as properly for a wooden backing, so you might need to use screws.
• Tremendous glue – To stick the sections of LED too small to make use of brackets
• Soldering iron, solder, and wires – to attach every part of LED into one full circuit.
• Sharp knife – artwork knife, razor blade, exacto knife, no matter you’ve gotten that’s sharp and you may management.
• Mounting {hardware} – I used drywall screws and anchors, however relying on the place and what you might be  mounting towards will decide what you want.
  Drill and drill bits – to make room for the standoffs for mounting.

Designing the template

Earlier than you dive too deep into this, you’ll want to work out what sort of signal you need to make. In fact, I did a MatterHackers emblem, however the important thing factor to recollect when designing your signal is to consider how every part will join to one another: the place are the road breaks going to be, the place will separate islands join to one another, and many others. The neon mild is versatile, however not tremendous versatile; don’t count on to make a pointy 90° flip, relatively a gradual bend. To extra intently replicate the MatterHackers emblem, it labored greatest to create lineart of it – principally simply the define – and use that as the bottom relatively than making the emblem one stable shade.

Designing the brackets

Wanting on the MatterHackers emblem, there are loads of angles and straight traces, and never loads of pure curves. This meant it was vastly essential to maintain the lights straight alongside every path as a result of any waviness to it will be extremely apparent. Initially, I solely made brackets for the corners and you can inform – it was a catastrophe. On the second try, principally all the signal was supported by brackets, which made meeting lots simpler too. Whereas designing the brackets, I used MatterControl to first do a mockup of the final form of the sunshine and made the bracket to suit round it. I obtained fortunate and had the primary try match actually snugly on the sunshine however to not such a level that it was stressing the 3D prints. In the long run I had three types of brackets: straight sections, 120° sections, and one massive circle for the circle of the emblem (with a small cutout for wires to go by means of). Within the video you’ll in all probability see the outlet by means of all of the brackets, and that’s as a result of I initially meant to make these use screws, however surprisingly sizzling glue held on means stronger than I anticipated they usually weren’t vital. If as a substitute I wished to make use of a wooden backing, then they’d undoubtedly come in useful.

Designing and chopping the acrylic

We took the graphic create because the template and expanded the border of it ever so barely to have a little bit of unfavourable house across the signal. This additionally gave me a vector file I might make the most of to chop it out. I’ve loads of instruments at my disposal. Not loads of energy instruments however a ton of computerized instruments like 3D printers and CNCs. For me, it was lots simpler to create a vector file from the unique design and reduce it out utilizing a Shapeoko XXL and a ½” bit than it was to attempt to freehand it utilizing my nonexistent jigsaw or bandsaw. Use the instruments you’ve gotten accessible to you to chop this half performed, whether or not it’s chopping out a bit of plastic or making a pleasant picket background.

Printing the brackets

That is the straightforward half. I’d advocate printing with as many perimeters as you may since these must flex a tiny bit with out breaking. I printed mine with 4 perimeters at 30% infill and I used to be in a position to get the brackets printed out in about eight hours on the Pulse XE.

Setup for meeting

Begin by printing out the design and tape all of the items again collectively into one huge template. You’ll need to be as exact with this as you may, as a result of this might be your information in assembling the signal. I simply used no matter tape was closest, which was blue tape, and set to work taping every web page collectively like a giant puzzle. You’ll then need to lay your acrylic sheet on high of the paper and finalize your spacing across the edges, then tape the acrylic to the paper so it doesn’t slip.

Take your brackets and lay them out over all the signal. Examine for wherever that appears prefer it would possibly want extra assist or the place it would profit from a constraint to maintain its form. It’d be useful to take an image of it at this level, as a result of simply transferring across the neon mild will get in the best way of the brackets.

Lower off an finish piece of sunshine from both finish of the LEDs; 5 inches needs to be sufficient. You’ll use this as a ruler so you will get on the finish of an entire part of LED to keep away from lifeless zones. It doesn’t matter the place you chop by means of for this piece, simply watch out with the fragile strip of LED on the within, you need to take away that in a single piece; don’t rip your ruler in half.

Meeting

Choose one main part of lighting and begin there. As soon as your glue gun is sizzling and prepared, put a glob of glue onto the again of the bracket and press it onto the trail of your signal. Begin with issues like corners and distinctive shapes earlier than doing lengthy straghtaways; you don’t need to put a straight piece too near a nook and never have sufficient room. Be sure to don’t go overboard with the glue – you simply need sufficient to squish between the bracket and the acrylic, however not a lot that it oozes out. It’s superb if it does, however your signal will look messier on a better inspection.

Maintain the “ruler” over the tip of the neon mild, matching up the solder factors of the sunshine to the ends of the ruler and begin marking the place every part ends (or each different, no matter works). When you’ve obtained a good size measured, weave the total size of sunshine by means of the brackets till you attain a degree the place they will’t make the flip as cleanly as you’d like (in my case the nook on the ends of the hexagon) and discover the reduce line closest to the place you need to finish the lights. Fastidiously press your knife into the sheathing, being light sufficient to not reduce by means of or scratch the strip inside. You’re first checking that your ruler was on the mark and that there’s certainly the tip of a bit the place you marked it and never proper by means of an LED. For those who can see that your mark was correct and there’s a reduce line seen, reduce alongside it and separate the 2 sections. Repeat this for the remainder of the lengths of sunshine on this part: threading it, lining it up, and chopping it off.

After getting all of your free sections, rigorously tin the contacts every strip, and reduce,strip, and tin quick lengths of wire to bridge the hole between every part of LED. If the size of LED is just too quick to comfortably slot in a bracket (as within the bracket will crowd that space), I discovered that superglue holds the lights onto the acrylic very well. It’s principally a everlasting answer, so attempt to design your means round this gap should you can keep away from it (but it surely’s not such as you’d take aside your stunning signal when it’s performed, proper?) Repeat this for the remainder of the signal. There’s going to be loads of chopping, stripping, and soldering, however it would all be price it in the long run.

Mounting

Like I discussed earlier than, I wished this mounted on the wall within the background of our movies, so I wanted to do greater than an image hanging hook and name it good. After doing some research, I used to be reminded of how glass is historically mounted on partitions: a gap by means of the glass, a standoff that screws into the wall, and a cap that threads into the standoff and thru the glass. Making a cap that has screws on it’s doable however would take some work to get tolerances down, however a easy friction match relying the layer traces could be straightforward sufficient. With half an hour’s work I modeled a standoff across the drywall anchors and the screws it got here with.

• Standoff – thick sufficient on the backside of the outlet to offer the screw sufficient plastic to press towards, holes huge sufficient for it to simply go by means of however not sloppily, and a small gap on the underside to suit the drywall anchor (since they don’t press in utterly flush with the wall).
• Insert – thick sufficient to have sufficient plastic for the screw to press towards, sufficient house between the insert and standoff to assist the acrylic
• Caps – Simply sufficient tolerance to press into the insert and never fall out, however straightforward to pry out if I must entry the screws once more.

After some experimentation with chopping holes in some scrap acrylic, I discovered that beginning with a pilot gap and instantly transferring to the total dimension drill bit shattered chunks out of the acrylic, progressively growing the dimensions of the bit brought on some chipping, and taping each side of the acrylic and taking it straightforward nonetheless shaped micro-fractures within the acrylic. With one final try earlier than breaking out the soldering iron once more and melting the holes in it, I attempted a spade bit. It was good. Taking it straightforward I used to be in a position to carve by means of the acrylic lots gently than a daily bit, after which I might clear up the outlet with a daily bit to get it to the best dimension.

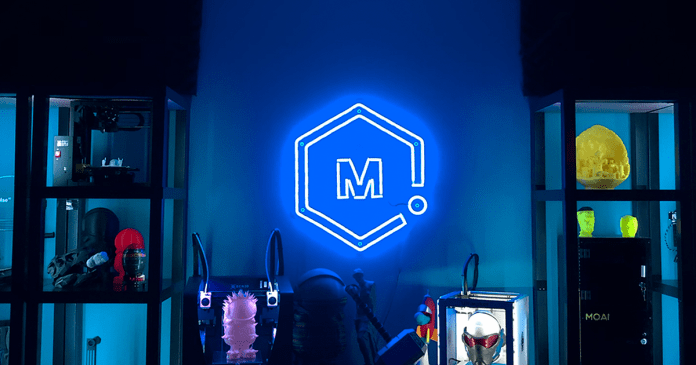

With the signal on the wall, I took a protracted part of wire and fed it behind the show shelf to the facility provide down beneath, reduce it, stripped it, and inserted it into the facility provide with its protecting case. All that was left was to show it on, and it really labored!

 So whereas this text is verbose, from begin to end, I actively labored on the MatterHackers neon signal for less than 5 – 6 hours, and that was nonetheless with trial and error going into it. I hope this provides you some concepts of an indication you need to create, huge or small. Both means, I’d like to see what you give you.

Glad printing!
