With the numerous initiatives I’m juggling without delay, it’s very easy for my desk to get cluttered. Both I’m planning out the following Weekend Construct or placing collectively the present one and 3D prints are inclined to pile up. A pair coworkers constructed themselves desk risers to fight their muddle, so I got down to do the identical for the Artistic Staff.

Every of the desk risers wanted to perform a pair issues:

1. Have sufficient house below the riser to retailer objects
2. Be semi-customizable
3. Have meeting be as speedy as potential

I knew I used to be going to want a number of components printed pretty rapidly, so I arrange a miniature print farm, like somebody would possibly in the event that they meant to make desk riser “kits” utilizing the varied printed components that make up this venture. For my print farm I relied on three of Creality’s newest printers: the CR-20 Professional, CR-10S Professional, and the Ender 3 Professional. I additionally went with MH Construct PLA filament because it’s dependable, simple to print, and I’ve an array of colours to select from which might verify the “semi-customizable” field off my listing.

Designing and Printing the Desk Risers

I not too long ago bought some nook clamps for a private venture – they’re clamps designed to carry two items collectively at ninety diploma angle so you may glue and screw them collectively. That appeared like an important idea to begin with, so I set about modeling some nook clamps that might maintain two items of wooden collectively and use as few items of {hardware} as potential. One half of my clamp would function the brace, it will be what holds the 2 items sq. with one another. The opposite piece can be the clamp – tightening it down would squeeze the 2 boards collectively to maintain them aligned in opposition to the brace. To provide myself room, I primarily based the designs round 1” thick boards, so if I used something smaller it will nonetheless match. I added some chamfers right here and there for some fundamental model and began printing them out.

Printing these I went with a 0.3mm layer peak for pace, 20% infill, and three perimeters so the strain of the clamp didn’t crack the components. For every desk I selected a separate shade: MH Construct PLA in black, gray, and white, and I batch printed them on the CR-10S Professional.

Designing and Printing Cable Group

At any time when I’m engaged on a venture that makes use of wires of any type (establishing a brand new pc station, constructing a 3D printer, wiring up a venture) I’m all the time anxious to get began with tidying up the wiring slightly than leaving it the place it really works however is messy. I wished to create a pair various things that may assist these risers look loads tidier; a cable grommet within the high of the riser and a wire run on the underside. These two had been pretty easy to make because the grommet could possibly be reverse engineered from one other coworker’s desk that got here with one and the wire run would simply be a easy hook that was stretched out. For the grommet lid, I wished to depend on the pure snap-fit you may get utilizing the layer strains of the 3D print to maintain the lid on, since gluing it will imply breaking it aside to get cables out and screws appeared extreme for a easy grommet. I experimented with what the printer I used to be working with may obtain the suitable match, and located {that a} 0.25mm hole between the cap and the bottom was simply the suitable match to let it snap in.

I used to be capable of print two units at a time on the Ender 3 Professional’s magnetic versatile mattress, which made half removing very easy and I may rapidly transfer on from one batch to the following, and I used MH Construct PLA Brown. To match the experiments I ran for press becoming, I printed each bit at 0.3mm layers, and since these wouldn’t face a number of put on, I went for a ten% infill and a pair of perimeters.

Designing and Printing a Catch All

To proceed on with the theme of customizability, I wished to create one thing that might act as a base for future concepts, so we wouldn’t be locked in with what I may first provide you with. One thing just like the grommet the place it’s a gap by way of the highest of the riser, however holding the liberty to swap it out later. It’s principally a cup holder, however I made a pair totally different variations: one with some holes within the base for condensation or one with a strong backside to make use of as a pencil holder as an alternative. Later I may even come again and determine I would like some dividers in it so I’ve a small tray in a single half and pens and pencils within the different. In designing this, I used to be particular within the contours of it to make it printable with none assist, and I did this by including chamfers to overhangs and mating faces so they might slot collectively.

The versatile magnetic construct plate and automated mattress leveling of the CR-20 Professional made it very easy to print a few these at a time and rapidly batched by way of them. I requested the remainder of the crew what shade and model they wished their set in and printed them in MH Construct PLA orange, gray, blue, and gold.

Meeting

At this level, all of the printing was executed and I needed to get to meeting. We received some 4’ x 1’ x ½” boards from the ironmongery store and chopped 9” off the tip to make up the legs. I did this utilizing a desk noticed, since that’s the software we had, however you might simply as simply use a round noticed, jigsaw, or perhaps a hand noticed for it. Mounting the nook brackets was tremendous easy; simply 4 bolts and nuts per riser, screwed them collectively and made positive all the pieces was aligned earlier than tightening them down.

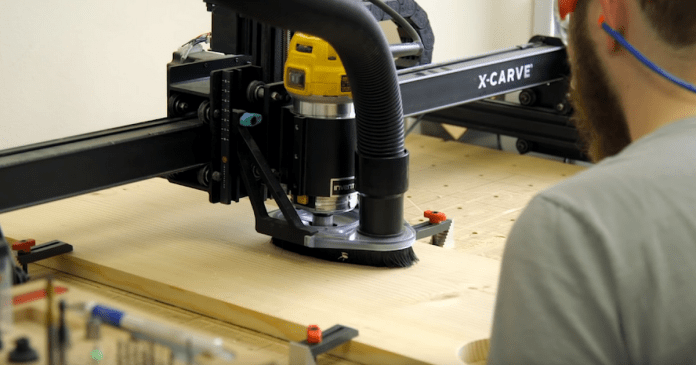

The grommet and catch all wanted holes reduce out for them, and whereas I’d have most popular utilizing plain outdated energy instruments, we really didn’t have any available to get the job executed, so I needed to arrange a CNC 3D Carver to chop out these two holes. If we had the instruments, I’d have drilled a gap out sufficiently big to suit a jigsaw blade, and carefully matched a tracing of the opening measurement I would want. To put in the printed components, I simply used just a little tremendous glue on the areas that may contact the wooden, sprayed just a little accelerator, and spun it in place to smear all of the glue throughout the surfaces. Then I can snap on and drop within the attachments.

 As we proceed on with our new desks and see the place we have to develop our reorganization we are able to all the time return and reprint some new additions. And if by in style demand different coworkers within the workplace need desk risers of their very own, it will be very easy to get everybody outfitted and arrange now that we there’s a print farm with all of the information able to go (which it’s also possible to obtain from the Design Retailer right here) and a course of nailed down. Do you make the most of an array of printers for batch printing? I’d love to listen to about what you’re creating!
Glad printing!
