Our October Hacker is utilizing his data of horses and 3D design to create a brand new trade for himself and farriers everywhere in the world.
Posted on September 25, 2020
by
Chris Morgan
As we transfer into an age of self-reliance and innovation, 3D printing on the small and medium enterprise stage is turning into more and more necessary for companies all over the world. That is the case for Derek Poupard, the Lead Farrier for Godolphin, a worldwide thoroughbred breeding and racing enterprise based by the ruler of Dubai, Sheikh Mohammed bin Rashid Al Maktoum.
Derek has been working with and using horses since he was 4 years outdated. He started his path as a farrier at a really younger age, studying to shoe horses (which is a serious part of what a farrier does), hold and preserve their well being and diagnose and deal with points with the right sneakers. Throughout these early days, he acknowledged there was room for enchancment – one thing past only a easy iron shoe nailed to the hoof of a horse.
Derek Poupard engaged on elegant Godolphin sprinter On The Warpath. Picture: Laura King
“I can bear in mind very early on making an attempt to find or implement a manner that I may slide small items of plastic in between the shoe and the hoof of a horse to assist preserve a correct gait, or enhance some deficiency that may assist the horse total – it was greater than only a shoe, it was a device to assist a horse past only a veterinarian or surgical possibility for correcting a difficulty.”
As a result of the hoof of every horse is as distinctive as they’re, a mass-produced resolution wasn’t but obtainable – there was no ‘one dimension suits all’ resolution in the marketplace, and even when there had been, the quantity of modification wanted for every shoe would make it unsustainable as a enterprise mannequin.
That being stated, most of the improvements in “farrier-tech” are attributable to Derek throughout his 30+ years within the career. In 2008, earlier than utilizing 3D printing to create customized sneakers, Derek created a moldable, versatile shoe constituted of urethane that was poured right into a latex mildew, primarily as a therapeutic device. “This strategy allowed me to switch the outdated glue-ons and plastic sneakers that have been in use on the time. It made it a lot simpler to suit, in addition to customise, for every horse.” Every shoe may very well be poured straight across the hoof of every horse for a really customized match.
A silicone mildew injection – one other of Derek’s many farrier improvements
As a foremost part of the coaching that the Godolphin horses obtain, coaching with out sneakers is prime of the listing. “Horses advanced with out sneakers and run their greatest with out sneakers, that’s very well-known, however coaching for a race up to now meant shoeing the horses off the observe throughout coaching. The forces {that a} horse’s limbs expertise in a full gallop place a monstrous load on the forelimbs and the hooves. In the event you add a shoe to that equation, the horse nearly can’t assist however develop into injured. Many of the pressure from the forelimbs comes down in the midst of the hoof – including a shoe will increase the gap between the purpose of pressure and the bottom, which will increase the gap the hoof has to get well from, which throws the whole lot off.”
From the peak part of a horseshoe – despite the fact that they’re small and light-weight usually – they improve the chance of harm, particularly when horses race. Enter 3D printing. As a farrier, Derek has designed revolutionary options many instances over for horses, and was launched to new 3D design instruments by his son. “My son is an AV Integrator and he satisfied me to purchase an IPad Professional and pencil. I then began tinkering with designing and the prospect of 3D printing as I used to be at all times making an attempt new issues to make horses sounder and sooner. With Shapr3D, I quickly had a number of working fashions for the designs I had in thoughts.”

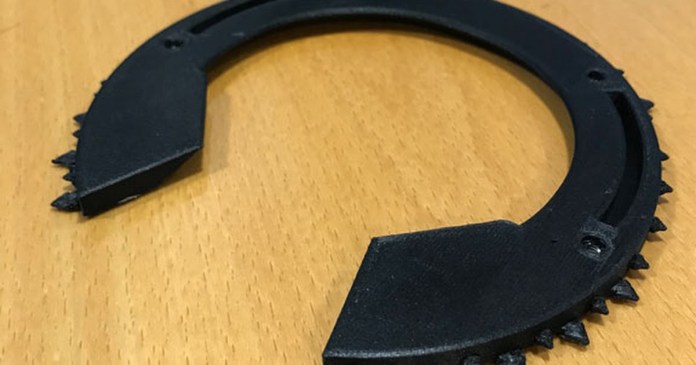

An instance of a 3D printed interface along side a conventional horseshoe.
This led Derek to buy his first 3D printer in January of 2020. “I purchased a Creality Ender 3 Professional. Within the first hour, I used to be hooked! However I used to be a bit restricted because of the restricted sorts of filament that the inventory Creality may print.” Derek iterated his new designs with dozens of supplies. “I attempted the whole lot – PLA, ABS, nylon, PETG, you title it, I threw it on the machine looking for the appropriate materials for my wants. Many of the supplies have been a lot too brittle to face up to the forces and have been damaged in moments. Fortunately I examined with NylonX, a carbon-fiber infused nylon filament, and it labored like a attraction.”
Whereas the designs are meant for the hooves of horses, they aren’t to switch the shoe itself – they merely act as a short lived manifold to the steel sneakers, permitting them to be taken on and off rapidly and simply with solely 4 M4 screws, ‘Method One’ pitstop model. “We are able to now in a short time change out a shoe on a horse with out the necessity for nails. We connect the 3D printed interface to the hoof with casting tape, and the interface has sockets that enable us to make use of screws as an alternative of nails, conserving the hooves wholesome and intact.”
Repairing an Injured Hoof with a Newly Put in 3D Printed Horseshoe Interface
Along with racing-inspired interfaces, Derek has designed 3D printed interfaces to assist rehabilitate a number of points that will come up over the lifetime of a horse. A number of designs embody an interface mannequin with a heartbar for horses which are experiencing laminitis. Different designs comprise extra assist or much less assist for the ‘frog’; the triangle of tissue on the underside of a horse’s hoof that gives shock absorption, traction, safety, and extra. He has additionally designed a ‘yarbroll’ 3D print for the entrance and rear hoof for hoof casting to assist facilitate much more critical rehabilitation. Most of those designs are nonetheless connected with conventional nails, with design choices obtainable for the M4 screw attachments – one other benefit of 3D design and printing.
With a small quartet of Pulse XE 3D printers buzzing away, Derek is ready to print the shoe manifolds he wants on-demand. Relying on the scale of the hoof, the design file can simply be manipulated with free 3D modeling software program and printed in hours. Derek has additionally shared his new designs with farriers all over the world. He at present has prospects and farriers utilizing his printed designs on their very own Pulse XE 3D printers in Australia, Dubai, Bahrain, and the UK. As a result of the design information are digital, they are often despatched wherever at any time.
3D Printing a NylonX Interface on a Pulse XE
“I’ve been inventing completely different horseshoeing strategies over the previous 30 years and with 3D know-how and the energy and adaptability of NylonX I can now create bespoke horseshoeing merchandise that haven’t been obtainable earlier than. Traditionally we have been actually restricted as designing and making use of would take weeks if not years. But it surely now may be performed in hours.”
Derek has seen a staggering quantity of curiosity in his strategies over a brief time frame – he has solely been growing and processing his 3D printing designs for under 8 months on the time of this text. “It has been life altering for me. The very fact I can design, print and apply myself, as an alternative of counting on somebody distant to manufacture my designs, has lower the training curve and switch round time so I can now train others to do the identical course of successfully in a really brief time.”
“The 3D printed designs have helped horses get sounder sooner and created an enormous curiosity in my commerce, and I’ve made this know-how obtainable to all Farriers across the globe so horses everywhere in the world can profit from these advances.”
A working prototype of the heartbar shoe earlier than the screw inserts have been added.
As a result of Derek is an innovator, he sees far more room for enchancment in 3D printing know-how. “Attending to a stage of sooner printing, with wi-fi, distant entry to printing controls could be extraordinarily handy. As well as, it might be improbable to have quick-change swappable hotends which are precisely the identical z-gap to remove paper hole testing for nozzle modifications. That manner in case your nozzle clogs, you undo one screw/clamp/lever and alter your entire hotend so prints proceed seamlessly. Then you may spend time cleansing/repairing the issue whereas the printer continues.”
We stay up for the success that Derek is having along with his newfound enterprise, in addition to more healthy horses, and extra aggressive races from these wholesome horses sooner or later.
To study extra about Derek and his 3D printing farrier improvements, go to his web site or the very energetic 3D Farrier and Horseshoeing Fb group – hyperlinks beneath.
3D Farrier Web site:
3D Farrier and Horseshoeing Fb Group:
