How you can Succeed with 3D Printing Metallic on a Desktop 3D Printer

What’s metallic 3D printing?

Till lately, 3D printing with metallic has been restricted to sintering or powder 3D printing. Basically, metallic powder is certain collectively utilizing excessive powered lasers, after which the elements are post-processed in a kiln or forge to supply almost 100% strong metallic elements. These machines, supplies, and the post-processing wanted to supply elements are costly to personal ($100,000+ for entry-level machines), and cost-prohibitive for most people. You possibly can simply spend over $1000 for just a few small elements.

Fused Filament Fabrication (FFF) 3D printing has been round for just a few a long time now and is properly established, however is usually restricted to thermoplastics. Metallic Injection Molding (MIM) has been round for some time as properly, and is now a typical manufacturing course of. You might have virtually definitely used a instrument or machine lately that had MIM elements in it (cordless drill, watch, automotive elements and even keys).

Now the FFF and MIM processes are becoming a member of forces to introduce metallic filament to desktop 3D printing. BASF’s Ultrafuse 316L filament is a metallic filament that’s particularly designed to be debound and sintered, leaving your printed half almost 100% strong 316 chrome steel. One of the best half about this materials is that it may be printed on nearly any desktop 3D printer, just like the BCN3D Sigmax R19, Ultimaker S5, Pulse, or any 3D printer with the best upgrades.

What’s Ultrafuse 316L 3D printing filament?

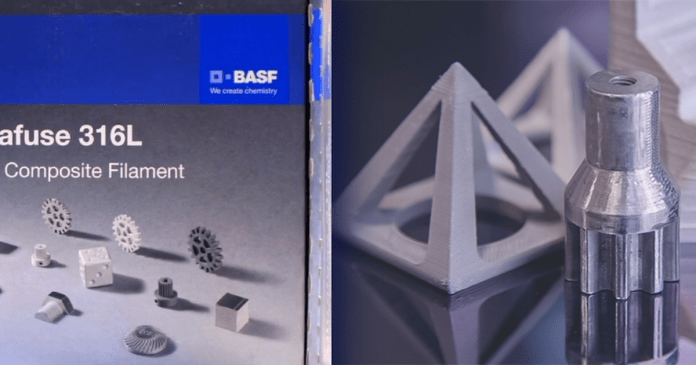

BASF Ultrafuse 316L Metallic-polymer filament, developed by BASF’s 3D Printing Options staff, produces metallic elements in an austenitic chrome steel sort 316L utilizing commonplace FFF printer techniques and subsequently an trade commonplace debinding and sintering course of. The fabric itself (in filament kind) is over 80% 316L chrome steel with a base materials that may be a polymer used to bind the fabric collectively throughout the printing course of. This formulation, mixed with the debinding and sintering course of, leads to full metallic austenitic chrome steel sort 316L 3D printed elements which may actually open up doorways to new functions.

Vital Definitions:

Earlier than we get began with the how-to technique of printing with metallic in your 3D printer, listed below are some phrases you’ll need to familiarize your self with:

• Debinding: course of that removes the plastic materials from the inexperienced half earlier than sintering
• Sintering: course of that turns the powdered metallic within the brown half into strong metallic via warmth
• Inexperienced Elements: printed elements that haven’t gone via the debinding and sintering course of
• Brown Elements: elements after debinding, earlier than sintering. That is when the half is the weakest, subsequently usually thought-about when designing for profitable processing
• FFF: A way of 3D printing known as Fused Filament Fabrication which melts a monofilament to create the half from digital designs
• MIM: Metallic Injection Molding

Who ought to use BASF Ultrafuse 316L Metallic 3D Printing Filament?

There are just a few causes it’s possible you’ll be taken with printing with metallic utilizing a desktop 3D printer. First, if you’re at the moment producing metallic elements, prototyping via conventional milling strategies, and have the necessity for low quantity injection molded elements, think about using BASF Ultrafuse 316L 3D printing filament.

Second could be for those who merely want extra energy and sturdiness in comparison with your plastic 3D printed elements. Transitioning to metallic elements is now simpler and extra accessible than it ever has been through the use of Ultrafuse 316L in your desktop 3D printer. This materials is particularly designed for producers, small enterprise house owners, or anybody seeking to produce metallic elements on a smaller scale with out all of the complexity of typical CNC milling or MIM procedures.

Designing for Profitable Manufacturing

Let’s take a second to information you thru the vital issues for succeeding with metallic desktop 3D printing.

Together with anisotropic shrinking, there are different design components that have to be thought-about for succeeding with desktop metallic 3D printing. These suggestions are meant to supply steerage with the intention to succeed early on. As experience progresses, these guidelines might be adjusted in your particular designs and use circumstances.

• Design for 3D Printing – Suppose Additive, Not Subtractive Manufacturing – Design for manufacturing is at all times vital and one thing that’s understood as a fundamental a part of Engineering. 3D printing is not any completely different. Simply as you will have to pay attention to draft angles when designing for injection molding, or tooling radius for milling, 3D printing has its personal set of parameters to contemplate when designing for that manufacturing methodology. Remember to contemplate this when trying to print your elements, usually one thing designed for milling or injection molding doesn’t switch 100% to 3D printing with out some modification.
• Elements Ought to Be Flat on One Facet – The printing course of depends on the supplies’ adhesion to the mattress floor (consider it as a datum). To make sure the datum stays true, a flat floor is advisable. This helps for the half to stick properly to the print mattress in addition to cut back any warping which will happen because the half is cooling on the print mattress.
• Design with a Excessive Width to Top Side Ratio – When designing elements for sintering, it’s good to contemplate the energy of the half at its weakest state (as a brown half, after debinding). At this stage, the extra secure you may make the design, the extra probably the half is to undergo the sintering course of in tact. Because of this, designs which are wider than they’re tall (assume pancake as a substitute of a tower) usually have extra success. This isn’t to say you can’t succeed with 3d printing a metallic tower, however following this design guideline will produce the very best and most constant outcomes.
• Design Options to Be Homogeneous – It is a fancy approach of claiming do not have drastic variations of half thicknesses. A big mass with delicate options will fail throughout sintering as a result of the time wanted to totally sinter the biggest elements will deteriorate (overheat) the small options. Because of this, homogeneous design via fixed function geometry and thickness needs to be thought-about.
• Keep away from Skinny Partitions – It is a bit redundant if designs are already contemplating function homogeneity, however creating a component with solely skinny partitions is troublesome. The skinny partitions can delaminate throughout the sintering course of – a minimal thickness of 1.5 mm is an efficient place to begin. Even with this minimal wall thickness, make sure you have a good infill overlap (35% or so) to make sure the wall retains energy whereas being processed.
• Keep away from Overhangs – Due to the debinding and sintering course of, no assist materials can be utilized. For finest outcomes, overhang angles needs to be 50° or steeper. This prevents the fabric from sagging throughout the sintering course of.
• Preserve Elements Inside 100 x 100 x 100mm Construct Envelope – For finest outcomes, preserve elements inside this construct envelope. You’ll be able to print bigger elements, however the bigger the half, the extra probably there will likely be failures within the debinding and sintering course of.

Getting ready a Design for Desktop Metallic 3D Printing

Elements shrink anisotropically within the debinding and sintering course of. Meaning they shrink at completely different charges alongside completely different axes. Elements have to be scaled +120% (+119.82% for extra accuracy) of the required closing dimension in X/Y, and +126% (+126.10% for extra accuracy) of the required closing dimension in Z.

In case you are utilizing MatterControl you’ll be able to scale your objects pior to printing with the in-built scale instrument. It helps Ultrafuse 316L straight and can make your half precisely the best scale for the inexperienced half.

How you can succeed when 3D printing with BASF Ultrafuse 316L Metallic 3D Printing Filament

In an effort to print with Ultrafuse 316L filament, your desktop 3D printer will have to be geared up with the correct elements

• Heated mattress able to at the least 100° C
• Glass mattress with Dimafix mattress adhesive (most popular).
  • You too can use Kapton tape on a glass mattress, however we discover higher outcomes with Dimafix.
• Hardened nozzle (most popular).
  • You need to use a brass nozzle, however it’s going to have to be modified after roughly 1kg of fabric
  • Use a clear nozzle. It’s crucial to both use a nozzle devoted to printing BASF Ultrafuse 316L Metallic 3D Printing Filament or purge the nozzle of as a lot international materials as attainable (i.e. PLA, ABS, PETG, and so forth.). That is to make sure that no international supplies will trigger your elements to blow up and fail throughout the debind and sintering course of.

BASF Ultrafuse 316L 3D Printing Filament Settings

• Beneficial Print Mattress Floor: Dimafix on Glass Mattress
  • Various Possibility: Kapton Tape on print mattress (ideally on glass)
• Beneficial Nozzle: Abrasion Resistant and clear of any filament that is not Ultrafuse 316L
• Heated Mattress Temperature: 100 – 120°C
• Hotend Temperature: 215-235°C – By no means to exceed 250°C.
• No Half Cooling: Layer cooling could cause warping throughout printing
• Beneficial Layer Top: 0.10 – 0.25mm [.15 or lower for higher density]
• Beneficial Pace: 15 – 40 mm/s
• Infill: 100% – We suggest both Traces or Concentric sample relying in your geometry. These provides you with probably the most uniform and strong infill. Any gaps or voids in your infill might result in failure throughout the debinding and sintering course of.

It’s critically vital that your first layer is on the correct peak so that each one printed traces are utterly related to 1 one other. We have discovered that Dimafix mattress adhesive supplies the robust mattress adhesion essential for perfect flat prints. It’s additionally vital that your extruder is correctly calibrated in order that there are not any areas of under-extrusion inside the half. Gaps and voids could cause failure within the debinding and sintering course of.

Getting ready Inexperienced Elements for Processing

It is very important take away any contaminants – oils, fingerprints, mattress adhesives, and so forth. as a result of contaminants could cause failure throughout debinding and sintering.

Inexperienced Elements printed from Ultrafuse 316L 3D Printing Filament are very straightforward to clean-up as it’s comparatively comfortable. Take away brims, clear up any printing artifacts left from the printing course of. A razor blade, deburring instrument, and a small file set are advisable for clean-up. It’s a lot simpler to scrub up the inexperienced half than the metallic half.

If any warping occurred throughout the 3D printing course of – now is an efficient time to sand the bottom floor of your half flat. ‘Lapping’ the underside floor may have the half course of via the debinding and sintering steps with larger function and dimensional stability.

How you can Debind and Sinter Ultrafuse 316L 3D Printed Elements

Ship to Sintering and Debinding Service Home – There are service homes which are arrange with all the correct instruments and supplies to succeed with Metallic Injection Molding, debinding, and sintering. Merely print and clear your half, mail it off, and look ahead to it to return in only a few days after a scheduled run.

• BASF 3D Printing Options, with the assistance of their distribution companions, is organising a community of debinding and sintering providers so customers can ship their printed Ultrafuse 316L inexperienced elements out and get them again absolutely processed—all inside an accessible worth level. Simply save 1000’s of {dollars} on prototypes, metallic tooling, and purposeful metallic elements by outsourcing these providers.
• MatterHackers, BASF, and DSH make this outsourcing straightforward for you with MatterHackers’ BASF Ultrafuse 316L Processing Ticket. No must spend hours of researching for an reasonably priced, dependable debinding and sintering firm, negotiating worth, and determining which debinding and sintering course of is best for you. A worth is prepared for you at checkout and your elements are set to be processed with DSH Applied sciences, knowledgeable debinding and sintering service home. With the BASF Ultrafuse 316L Processing Ticket, all it is advisable do is buy this ticket, ship out your elements, and obtain your now metallic elements proper at your door.
• For particulars on how you can put together your printed elements for outsource processing, take a look at our “How you can Put together 3D Printed BASF Ultrafuse 316L Elements for Debinding and Sintering.”

In-house – Entry the correct debinding and sintering industrial-level gear and supplies, which may price as much as a fortune for professionals simply entering into additive metallic manufacturing. Efficiently working these machines would require correct data and specific ability units.

• After your elements have been cleaned and refined in submit processing, it is now time to vary them from inexperienced elements to strong chrome steel elements via catalytic debinding and sintering. Catalytic debinding is the method of decomposing the first polymer (the plastic holding the metallic powder collectively as a inexperienced half) in a gaseous acid surroundings⁠ at temperatures within the low a whole bunch (°C). Response merchandise are then burnt in a pure fuel flame at a lot larger temperatures of above 600 °C and your inexperienced half is now formally a brown half. That is carried out inside an enclosed, managed system designed particularly for this whole course of. Debinding is totally required because it prevents your inexperienced half from melting within the furnace throughout the sintering course of.
• As soon as the now brown half has completed the debinding course of, subsequent is sintering—the method of turning the leftover powdered metallic within the brown half into strong metallic via warmth. In a specifically designed furnace, temperatures are set proper beneath the melting temperature of the metallic with the intention to take away the secondary binder from the brown half. With this binder gone, the metallic particles at the moment are in a position to fuse collectively. Out of the furnace, the fabric reaches its closing properties as a strong chrome steel half.
• As a result of performing this processing in-house might be extraordinarily expensive for professionals which are new to debinding and sintering metallic 3D elements, we’re completely satisfied to supply a extra reasonably priced resolution via MatterHackers’ BASF Ultrafuse 316L Processing Ticket.

Publish Processing Sintered Elements

Sintered elements can, usually, be handled like another 316L Stainless Metal half. When obtained again they’ve a comparatively tough metallic floor ending. The elements might be polished to a shiny floor, floor for materials removing, and even machined for larger tolerance and fitment. We’ve had nice success with roto tumbling elements in an abrasive media to carry out the supplies’ luster.

Is 3D printing metallic on a desktop 3D printer proper for me?

If you happen to, your corporation, or manufacturing course of is seeking to quickly create prototype or manufacturing metallic elements with out spending the normal time and price of machining costly consumables, then desktop 3D printing with BASF Ultrafuse 316L Metallic 3D Printing Filament is your best option for you. Utilizing this materials on an ordinary desktop 3D printer is an economical different to typical subtractive strategies or setup and tooling prices of metallic injection molding.

Conclusion

As 3D printing turns into extra extensively out there to the typical shopper, its capabilities and potentialities additionally increase. Attainable industrial supplies available on the market such because the BASF Ultrafuse 316L Metallic 3D Printing Filament make 3D printing metallic extra reasonably priced and simpler for any maker keen about superior prototyping. When engineering-grade plastics comparable to NylonX and NylonG have happy the early rounds of designing and testing a venture, makers can then transfer on to producing metallic elements for an much more superior 3D printing expertise. Do extra along with your time and creativity if you dive into the world of 3D printing metallic.
