Researchers from Stanford College have developed a brand new high-resolution resin 3D printing course of. This novel method removes the danger of over-curing resin in unfavourable areas, resembling channels or voids, making it best for 3D printing microfluidic units.
Joseph M. DeSimone, Co-founder and former CEO of California-based 3D printer producer Carbon, co-authored the paper.
Now a board member on the firm, DeSimone performed a key position in growing Carbon’s patented steady liquid interface manufacturing (CLIP) expertise. The Stanford workforce leveraged a modified model of CLIP, referred to as injection CLIP (iCLIP), of their analysis.
Alongside undertaking leads Ian A. Coates and Gabriel Lipkowitz, DeSimone is listed as an inventor on a patent pending utility for strategies involving unfavourable house preservation utilizing iCLIP. The CLIP and iCLIP patents and patent purposes are being licensed to a brand new vaccine and drug supply firm referred to as PinPrint, co-founded by DeSimone.
The Stanford workforce’s iCLIP method repeatedly feeds a stream of contemporary polymerizable resin by way of the unfavourable house throughout 3D printing. This displaces resin prone to over-curing, permitting channels to be produced with considerably smaller heights and diameters.
Posting on X, Andrew Sink, Workers Purposes Engineer at Carbon, referred to as this injection-based resin 3D printing course of “the brand new leap ahead in additive.” In keeping with Sink, “it’s going to allow unimaginable issues within the photopolymer house.”
In keeping with the researchers, iCLIP unlocks improved design and materials freedom for high-resolution microsystem units resembling vascular beds and microfluidic-backed microneedles.
The research, titled “Excessive-resolution stereolithography: Unfavourable areas enabled by management of fluid mechanics,” was revealed within the Proceedings of the Nationwide Academy of Sciences (PNAS) journal.
forestall over-curing in resin 3D printing
Unfavourable areas are vital for microfluidic units, biomedical units, vascular networks, separation media, and digital circuits. They facilitate exact management of fluid circulation, improved sensor accuracy and enhanced separation effectivity.
Additive manufacturing strategies have been more and more adopted to provide these microsystems. Stereolithography 3D printing, together with digital mild processing (DLP), has turn into notably fashionable on this subject. DLP 3D printers use two-dimensional projections of UV mild to treatment layers of photopolymerizable resin layer-by-layer.
Though associated to DLP, CLIP 3D printing as an alternative depends on resin renewal on the construct floor. The method employs an oxygen-permeable window, which creates a polymerization-free space on the backside of the resin vat. This ‘useless zone’ prevents liquid resin from curing and sticking to the projection window, enabling shorter 3D print instances and the creation of extra fragile inexperienced elements.
In stereolithography, high-resolution optics are used to exactly direct the UV mild and precisely treatment every layer of resin on the XY airplane. Nevertheless, it is more difficult to attain excessive decision on the Z-axis (vertically).
Right here, it may be tough to maintain the sunshine confined to a single layer, with UV leaking into the previous 3D printed layers. This results in decrease half decision, with resin being over-cured in beforehand created unfavourable areas.
Present efforts to beat this embrace incorporating UV light-attenuating components into the resins which management layer thickness to enhance 3D printing accuracy. Nevertheless, these components require stronger mild to harden the resin, slowing the 3D printing course of. Additionally they typically possess poisonous properties, making them unsuitable for medical or life science purposes.
Subsequently, the researchers turned to iCLIP 3D printing. The workforce repeatedly pumped naturally oxygenated (inhibited) resin by way of the construct platform, flushing out any residual resin that would turn into over-cured within the 3D printed channels. This methodology allowed the workforce to efficiently 3D print high-resolution unfavourable areas with varied supplies.
iCLIP 3D prints high-resolution, microfluidic channels
To check their speculation, the Stanford workforce initially 3D printed 200 μm-diameter microchannels at angles starting from 0° to 90°.
Utilizing typical stereolithography 3D printing, the 90° channel can be extremely inclined to over-curing. When the channels had been fabricated utilizing iCLIP, optical micrograph photographs indicated that each one angles had been 3D printed to a excessive decision.
Subsequent, the workforce 3D printed a microfluidic community at a 30° angle, with the channel diameter various between 50 μm and 200 μm. Each imaging and electron microscopy confirmed an correct decision all through the unfavourable areas when the iCLIP course of was used.
The researchers additionally investigated how the injection charge of contemporary resin impacted channel decision throughout iCLIP 3D printing. They created a “turnover quantity” (Tu) to measure the ratio between how briskly contemporary resin was injected and how briskly the unfavourable house (or channel) was printed.
When no resin was injected, the 3D printed channels had been over-cured and improperly shaped. Because the Tu elevated, and extra resin was injected, the channels extra intently matched the supposed design. Nevertheless, rising the circulation charges an excessive amount of might trigger the channels to widen or crack.
The connection between Tu and the resin’s penetration depth (Dp), the space UV mild can journey into the resin earlier than turning into ineffective, was additionally assessed. The workforce discovered that because the Dp will increase, so does the Tu required to attain correct channel decision. This ensures that contemporary resin replaces the previous resin earlier than it receives an excessive amount of UV publicity, sustaining correct layer formation throughout 3D printing.
Trying to the longer term, the researchers consider iCLIP 3D printing gives vital worth for personalised medical units and microelectromechanical purposes.
To exhibit this, they 3D printed a variety of iCLIP-enabled microsystems, together with a microneedle patch, vascular networks for blood transport techniques, conductive gallium components, and a porous perfusion community.
Given the efforts made by DeSimone to patent this expertise for his new biomedical agency, it might not be lengthy earlier than units like this hit the industrial market.
3D printing microfluidic units
Additive manufacturing is being more and more leveraged for microfluidic purposes. Final yr, researchers from Queensland College of Know-how evaluated resin 3D printing for the manufacturing of microfluidic elements for cell-based purposes.
MOIIN Excessive Temp and MOIIN Tech Clear resins from DMG Digital Enterprises had been used at the side of ASIGA UV Max X27 DLP 3D printers to manufacture widespread microfluidic designs. These included 2D monolayer tradition units, pillar arrays, and constricting channels for droplet mills.
The research concluded that MOIIN Excessive Temp and MOIIN Tech Clear resins are efficient at 3D printing microfluidic channels for cell-based purposes. Each supplies had been confirmed to be biocompatible, and visual by way of imaging platforms resembling microscopes.
Elsewhere, Massachusetts Institute of Know-how (MIT) researchers not too long ago developed 3D printed microfluidic units which can be self-heating. Requiring roughly $2 value of supplies, the units could be manufactured as low-cost illness detection instruments.
The MIT workforce utilized multi-material extrusion 3D printing, incorporating a biodegradable polymer (polylactic acid or PLA) and a modified model infused with copper nanoparticles. When reworked right into a resistor, this modified PLA turns into conductive. This permits electrical currents to be dissipated as warmth, leading to a self-heating microfluidic gadget that may be 3D printed in a single step.
Nominations are actually open for the 2024 3D Printing Trade Awards.
What does the way forward for 3D printing maintain?
What near-term 3D printing developments have been highlighted by trade consultants?
Subscribe to the 3D Printing Trade e-newsletter to maintain up with the most recent 3D printing information.
You may also comply with us on Twitter, like our Fb web page, and subscribe to the 3D Printing Trade Youtube channel to entry extra unique content material.

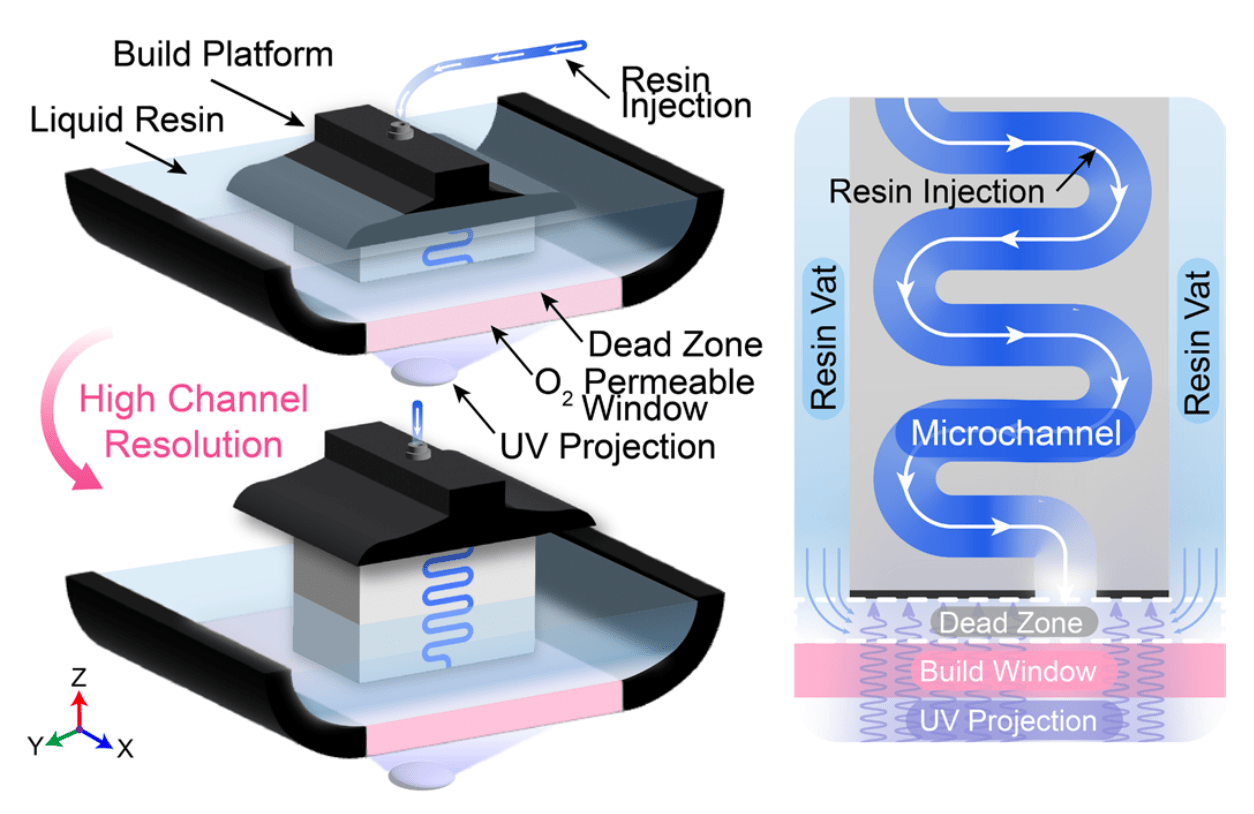

Featured picture exhibits a schematic of the iCLIP course of and the ensuing resolved unfavourable buildings. Picture by way of PNAS.
