Knowledge acquisition
After a complete overview of two,919 publication literature, 45 papers have been chosen and regarded related to this analysis. 293 completely different nanostructured surfaces have been studied by way of substrate materials, nanostructure form and measurement, and floor hydrophobicity. The uncooked dataset is supplied in Desk S5. Knowledge distribution of experiment parameters within the database was visualized by histograms and kernel density estimation (KDE) plots (Fig. S1). As depicted within the determine, some outliers existed within the database. For instance, most nanopatterns are discovered within the peak vary 0–6500 nm, however a couple of reached 32,000 nm.
Titanium and silicon have been the principle decisions of substrate supplies for the fabrication of nanostructures. In distinction, the dataset is extra evenly distributed among the many bacterial species, centred on E. coli, P. aeruginosa, and S. aureus (Fig. 1). Of those, 121 have been research of Gram-positive micro organism and 173 have been research of Gram-negative micro organism. The nanopattern can be extra evenly distributed by way of form, consisting primarily of pillar, but additionally partly of tube, cone, wire, spike, and so forth. There are 192 surfaces which can be hydrophilic with a WCA ≤ 90° and 102 hydrophobic surfaces with a WCA > 90°. Particulars of the dataset could be discovered within the supplementary data.
Knowledge distributions of (a) Form, (b) Supplies, and (c) Micro organism Species
Knowledge pre-processing
The first dataset comprised 293 rows and 12 columns (11 inputs, 1 output). The enter information consisted of diameter (nm), peak (nm), spacing (nm), side ratio, floor roughness (nm), water contact angle (WCA) (°) reported in numeric values. Variables with nominal values included supplies, form of nanopatterns, micro organism Pressure, Gram-stain kind motility, and form of micro organism as summarized in Tables 1, 2 and 3.
Enter transformation
For supplies of nanostructured surfaces, a simplified classification has been made because of the wide selection contained, e.g. Ti, Ti6Al4V, TiOH and TiO2 are categorised as Ti-based.
For nanotopogrpahy, the options corresponding to diameter, peak, spacing and side ratio are a great illustration of the form of the nanopattern, thus these options have been retained and the form of the nanopattern has been eradicated. Floor roughness has roughly 90% or extra lacking values and was due to this fact excluded. Diameter, peak, spacing, side ratio, and WCA all had lower than 30% lacking values and have been retained for the subsequent information imputation course of.
Equally, the Gram-stain kind, motility and form are consultant of the bacterial membrane construction, due to this fact these three options are chosen as enter and the title of bacterial species is eradicated.
Output transformation
We selected 70% as a threshold for our classification mannequin constructing. This threshold is just not arbitrarily set however is a mirrored image of a consensus throughout the nanobactericidal floor analysis group. We particularly referenced a number of articles that included nanobactericidal surfaces with greater than 5 completely different parameters reasonably than a single morphology [30,31,32,33,34,35,36,37,38]. The distribution of bactericidal effectivity in these experiments was comparatively uniform from 0 to 100%, with efficacious surfaces concentrated within the vary of 60–80%, with 70% rising as a sensible benchmark that balances stringent bactericidal efficiency with achievable targets in numerous situations. Thus, for regression fashions we stored the share of bactericidal effectivity as output options; for binary classification fashions we simplified the numeric bactericidal effectivity to 2 courses, i.e. whether or not it’s a profitable bactericidal floor.
Classification mannequin constructing
Mannequin choice was vital for the accuracy of ML prediction, and now we have chosen seven state-of-the-art algorithmic fashions for predicting the bactericidal effectivity, which included Okay-nearest neighbor (KNN), help vector machine (SVM), excessive gradient enhance (XGBoost), gradient boosting machine (GBM), random forest (RF), multilayer perceptron (MLP) for classification modelling and ridge regression (RR), XGBoost, GBM, KNN for regression modelling [30,31,32,33]. A short abstract is illustrated in Fig. 2 and defined in Desk 4.

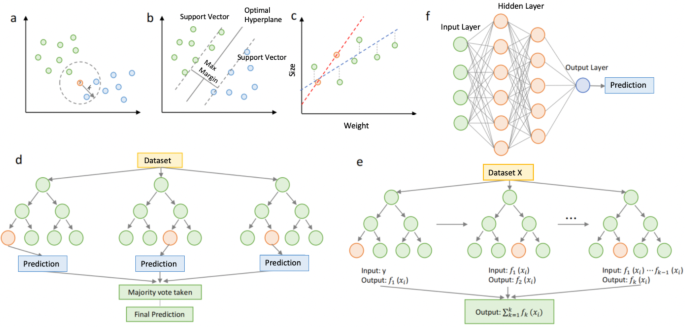

Illustration of the varied ML strategies used within the examine. (a) Okay-nearest neighbour (KNN). (b) help vector machine (SVM). (c) ridge regression (RR). (d) Random Forest (RF) (e) Gradient boosting machine (GBM) and excessive gradient boosting (XGBoost). (f) Multilayer perceptron (MLP)
Preliminary modelling
After the preliminary screening, the lacking values have been imputed, utilizing 5 completely different imputation methods: None, Depart empty, Imply, KNN and RF (Defined intimately within the methodology part). Performances of various information imputation strategies have been in contrast, as proven in Fig. 3. It may be seen from the plots that completely different information imputation strategies did have an effect on mannequin efficiency. Of the three lively filling clean strategies, RF carried out one of the best, with the best accuracy and F1 scores. The ‘None’ group had a excessive precision, which implies the excessive credibility of a declare {that a} case is optimistic. Nevertheless, it has a comparatively low recall, which signifies some false positives. Whereas the ‘depart empty’ group was extra evenly cut up throughout all indicators. Additional comparability of the outcomes of their 10-fold cross-validation revealed that the imply accuracy of the completely different imputations confirmed little distinction, stabilising at round 78%. Due to this fact, the ‘None’ group, the ‘depart empty’ group and the RF group have been retained for the mannequin constructing to additional examine the affect of the information imputation strategies on the efficiency of the fashions.

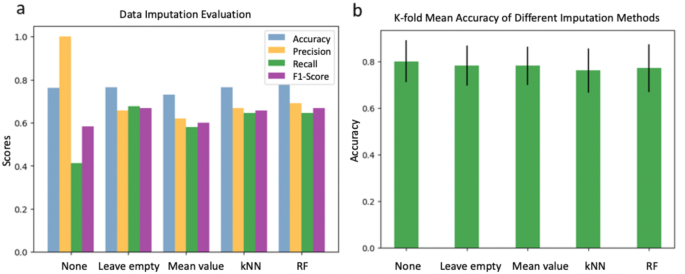

(a) Mannequin efficiency of various information imputation strategies evaluated by accuracy, precision, recall and F1 rating, (b) Mannequin efficiency of the completely different information imputation strategies was assessed by the common accuracy obtained from 10-fold cross-validation. Error bars are from 10-fold cross-validation
After information transformation the next three datasets have been obtained for the mannequin constructing step: Dataset I (n = 294, Depart empty group); Dataset II (n = 294, RF group); Dataset III (n = 140, None group). To additional construct a regression mannequin to foretell the bactericidal effectivity of efficiently bactericidal surfaces, we extracted information for the RF group with a bactericidal effectivity higher than 70% as Dataset IV (n = 105).
Classification mannequin constructing
Following preliminary modelling, we educated numerous classification fashions, and all mannequin parameters have been tuned to one of the best mixture. By traversing all of the mannequin parameters, one of the best mixture of parameters is chosen (see Desk S1). Mannequin efficiency outcomes are summarized in Fig. 4 and Desk S3. The outcomes recommend that the XGBoost and GBM fashions exhibit total greater accuracy and fewer fluctuation, which indicated a extra steady efficiency in comparison with the opposite algorithms employed (KNN, SVM, and MLP). It’s fairly attention-grabbing to notice that many of the fashions constructed are high-accuracy however low-recall techniques, returning only a few outcomes, however most of its predicted labels are right when in comparison with the coaching labels. As compared, XGBoost-I, II and GBM-III present excessive accuracy charges of 0.76, 0.78 and 0.93 respectively, and comparatively excessive precision and recall.
Classification mannequin efficiency evaluated by accuracy, precision, recall and F1 rating
We then in contrast the 10-fold validation outcomes of the XGBoost and GBM fashions (Fig. S2). The GBM-III and XGBoost-III fashions have the best common accuracy of 0.81 and 0.80 respectively, whereas XGBoost-III has smaller variation, representing higher precision. Due to this fact, the GBM-III mannequin had one of the best total efficiency, with a mean accuracy of 0.81.
To additional take a look at the efficiency of the mannequin with completely different information imputation strategies, we in contrast the confusion matrixes to evaluate the efficiency of XGBoost fashions (XGBoost-I, II, III). The confusion matrices for XGBoost-I and II are an identical (Fig. S3), indicating that utilizing RF as an information imputation on this examine is a non-inferior strategy.
Subsequently, we utilised 4 new enumeration datasets (Ti-based nanostructured surfaces towards Gram-negative micro organism, Ti-based nanostructured surfaces towards Gram-positive micro organism, Si-based nanostructured surfaces towards Gram-positive micro organism and Si-based nanostructured surfaces towards Gram-negative micro organism with 829,448 datapoints in every dataset) to realize additional insights into the nanostructured parameters and bactericidal effectivity of the nanostructure parameters and bactericidal effectivity. Based mostly on the GBM-III fashions, we used the enumerated dataset to create a bactericidal effectivity map (Fig. 5). Based on the determine, many of the excessive bactericidal effectivity surfaces, each Ti-based and Si-based supplies, have polar WCAs, i.e., superhydrophilic and superhydrophobic. The nanostructured surfaces are total extra environment friendly in bactericidal actions for Gram-negative micro organism than for Gram-positive micro organism. As well as, the diameter of extremely bactericidal surfaces is usually lower than 200 nm.

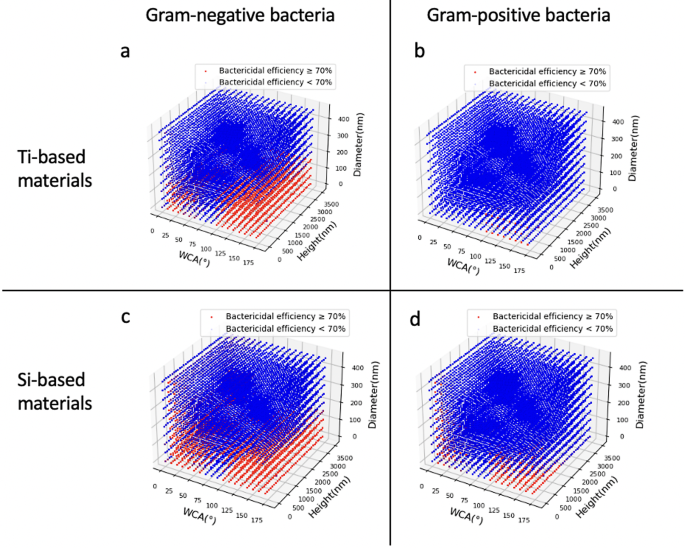

Bactericidal effectivity prediction map: (a) Ti-based nanostructured surfaces towards Gram-negative micro organism, (b) Ti-based nanostructured surfaces towards Gram-positive micro organism, (c) Si-based nanostructured surfaces towards Gram-positive micro organism, and (d) Si-based nanostructured surfaces towards Gram-negative micro organism
Characteristic significance evaluation and mannequin interpretation
Overview of characteristic significance
Deciphering the mannequin supplies useful insights into its studying traits. Characteristic significance learnt by the GBM-III mannequin was plotted to characterize the ML’s interpretation of the correlation between completely different options and bactericidal effectivity. The characteristic significance of the XGBoost-I, III; fashions have been additionally analysed and used to match the variations between the conclusions drawn below the completely different algorithms. The characteristic significance evaluation for each fashions yielded related conclusions (Fig. 6), displaying that the highest 4 significance rankings for each fashions have been WCA, peak, diameter and side ratio, all of that are options of nanotopography. This means that nanotopography is certainly the principle issue dominating the bactericidal exercise of nanostructured surfaces, which can be in step with the mechano-bactericidal idea talked about beforehand. For WCA, the characteristic significance is 20.8%, 27.7%, and 20.6% within the XGBoost-I, III; and GBM-III fashions, respectively. Though the vast majority of surfaces within the dataset have been hydrophilic, the least-tested hydrophobic surfaces have proven greater success charges than their hydrophilic counterparts. The potential purpose is that hydrophobic and hydrophilic surfaces have completely different mechanisms of bacterial inhibition, as talked about beforehand, one stopping micro organism from adhering and the opposite killing them once they do, however the completely different inhibition mechanisms obtain the identical function.

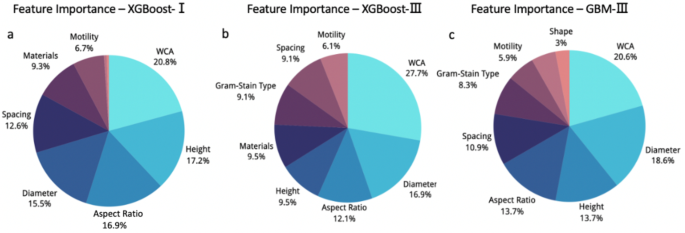

Characteristic significance distribution of (a) XGBoost-I, (b) XGBoost-III, (c) GBM-III mannequin
Mannequin interpretation for topographical options
Determine 7 reveals the Shapley additive explanations (SHAP) of topographical options. SHAP values is a unified framework to interpret ML predictions proposed by Lundberg and Lee [30], to explain how a lot every characteristic contributes to the predictions. On this ML mannequin, the SHAP and have values of the WCA are evenly distributed on the x-axis (Fig. 7a), whereas it may be concluded from the distribution of excessive characteristic worth factors that top WCA has a sure optimistic impact on bactericidal effectivity. Determine 7b elaborates on the variability within the affect of WCA on the mannequin’s output throughout completely different samples. The evaluation highlights that WCA values contributing positively to the mannequin’s output predominantly fall throughout the ranges of 0–10 levels or 160–180 levels, as indicated by the crimson zones within the plot. These ranges correspond to surfaces which can be extraordinarily hydrophilic or hydrophobic, respectively, each of that are thought of helpful for bactericidal exercise. Conversely, WCA values located across the median, predominantly encapsulated throughout the blue zones of the plot, are related to a damaging affect on the output worth. This means that surfaces with median WCA values could characterize a much less efficient or undesirable vary for bactericidal functions, indicating a fancy relationship between floor wettability and bactericidal effectivity that’s depending on the extremity of the hydrophilic or hydrophobic nature of the floor.

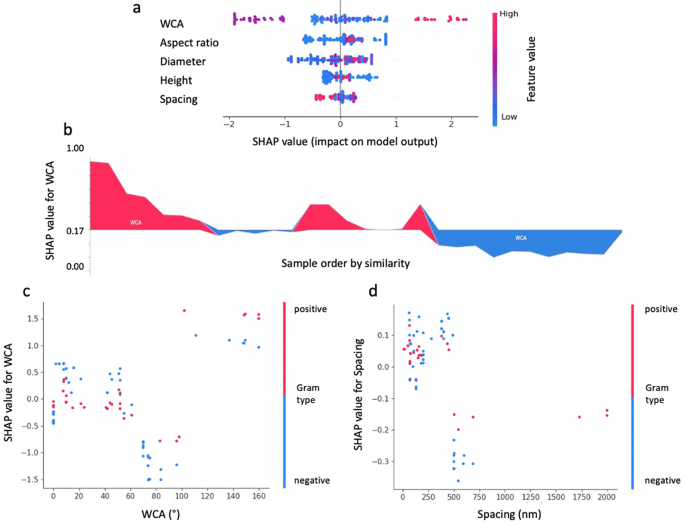

SHAP values evaluation abstract for XGBoost-III mannequin. (a) SHAP values of various options present their contributions to the mannequin output on the native scale. Affect: The horizontal location reveals whether or not the impact of that worth is related to the next or decrease prediction; Authentic worth: Color reveals whether or not that variable is excessive (in crimson) or low (in blue) for that remark; (b) SHAP abstract power plot for WCA results; SHAP dependence plots articulate the intricate relationship between the (c) WCA and Gram varieties, and (d) Spacing and Gram varieties
Peak and diameter are immediately associated to the bacteria-nanopattern contact space, whereas the tip measurement of the nanopattern is essential as it’s the first level of contact between the micro organism and the floor [43]. The ML mannequin reveals that each diameter and peak are positively correlated with bactericidal effectivity. Some research based mostly on analytical fashions help our conclusions, which recommend {that a} bigger radius supplies a wider contact space, driving the suspended area of the membrane to aim to accommodate the change within the perimeter by stretching and ultimately rupturing [23, 44]. Nevertheless, smaller tip radius might induces greater strain on the bacterial membrane, enhancing the bactericidal impact of the nanostructured floor [5].
The SHAP values for side ratio point out that top side ratios have a optimistic impact on bactericidal effectivity. That is in step with Linklater et al. examine [22], which demonstrated that the pliability of a excessive side ratio construction enhances the elastic power storage of the nanostructure and releases this power by means of bending when in touch with micro organism, thereby growing the bactericidal exercise of the nanostructured floor.
Mannequin interpretation for materials properties and bacterial species
It’s noteworthy that the fabric properties of the nanostructured floor account for a small proportion of the characteristic significance. This corresponds to the mechanisms revealed from some experimental approaches, i.e. the mechano-bactericidal mechanism on nanostructured surfaces is impartial of chemical results, because the performance (bactericidal capacity) was proven to persist throughout supplies [7]. Nevertheless, current research have prompt that organic and chemical processes additionally play a synergistic function within the bactericidal exercise of nanostructured surfaces [45,46,47]. For instance, Jenkins et al. proposed a synergistic ROS-mediated mechanism of mechano-bactericidal exercise, which entails chemistry on the bacterial degree, in distinction to the purely mechano-bactericidal mannequin at present proposed [46].
Moreover, the species of micro organism as a organic issue is just not of excessive significance within the ML mannequin, a potential purpose is the restricted dataset, which focuses on only some particular micro organism. Whereas it’s now typically accepted that Gram-negative micro organism are extra weak to the bactericidal results of nanostructures than Gram-positive micro organism due to the variations between their bacterial membrane buildings. Within the SHAP dependence evaluation (Fig. 7c and d), we posit that Gram-positive micro organism reveal elevated sensitivity to hydrophilic surfaces with nanostructured spacing under 250 nm. Whereas the SHAP dependence plot distribution for Gram-negative micro organism in relation to WCA and spacing seems comparatively dispersed.
Particular person information factors evaluation and comparative evaluation
To reinforce the comprehension of why sure options exhibit a extra pronounced affect than others inside our dataset, we employed an evaluation of particular person SHAP worth plots similar to particular information factors. We chosen three consultant information factors for this evaluation, two of that are introduced under, with the remaining particulars supplied in Fig. S5 (Tables 5 and 6).
Case 1: Silicon-based nano pillar towards P. Aeruginosa

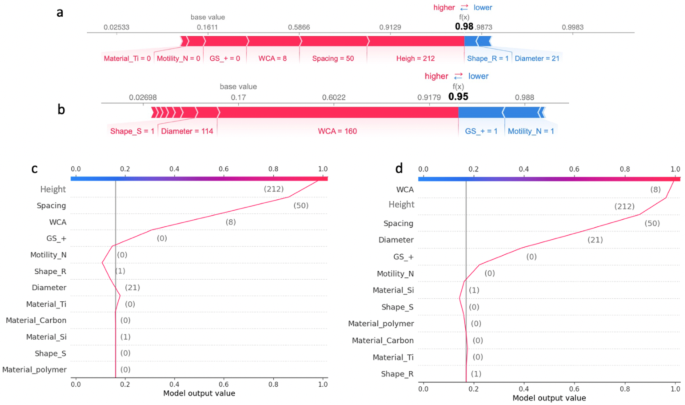

Comparative Evaluation of Particular person SHAP Values for the XGBoost-III Mannequin and MLP-III Mannequin – Case 1: (a) Particular person SHAP power plot for XGBoost-III Mannequin; (b) Particular person SHAP power plot for MLP-III Mannequin; (c) Particular person SHAP resolution plot for XGBoost-III Mannequin; (d) Particular person SHAP resolution plot for MLP-III Mannequin
Determine 8 illustrates that ‘Peak’ has a big optimistic SHAP worth, indicating that as the peak of the nanostructures will increase, it contributes extra to the mannequin’s prediction of bactericidal effectivity towards P.aeruginosa cells. This aligns with the conclusion on this examine [12], which means that greater nanostructures on surfaces result in a lower in bacterial adhesion because of diminished contact space between the micro organism and the substratum.
In distinction, ‘Materials’ has a minor affect on the output worth, which is in step with the earlier studies stating that the nanoscale topography influences bacterial attachment behaviour, orientation, and the expression of attachment organelles (fimbriae), with a desire for sure substratum varieties [49].
The significance of peak in these figures helps the notion that the bodily dimensions of floor nanoarchitecture and materials stiffness are vital elements within the adhesion and potential killing of bacterial cells.
Case 2: Titanium-based nano tube towards P. Aeruginosa

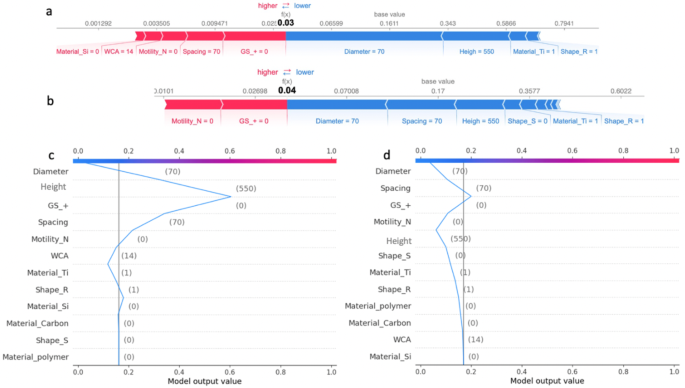

Comparative Evaluation of Particular person SHAP Values for the XGBoost-III Mannequin and MLP-III Mannequin – Case 2: (a) Particular person SHAP power plot for XGBoost-III Mannequin; (b) Particular person SHAP power plot for MLP-III Mannequin; (c) Particular person SHAP resolution plot for XGBoost-III Mannequin; (d) Particular person SHAP resolution plot for MLP-III Mannequin
On this case, the scale, particularly the diameter and peak, of the nanostructures used within the dataset are considerably smaller relative to the general vary noticed. In Fig. 9, though the ‘GS’ characteristic exerts a big optimistic impact on the output worth, the opposed impacts attributable to each ‘Diameter’ and ‘Peak’ on the bactericidal effectiveness of the nanostructures culminate in a closing mannequin output of zero. The examine that features this case concerned assessing the bactericidal effectivity of nanostructures with an identical structural parameters towards numerous bacterial strains. Notably, the nanostructures demonstrated enhanced effectiveness in eliminating Gram-positive micro organism.
Moreover, the optimistic affect related to ‘GS’ signifies that the mannequin identifies the presence of Gram-negative micro organism as an element decreasing the chance of poor bactericidal efficiency, which is in alignment with the conclusion of the examine [48]. Whereas the SHAP worth evaluation for ‘WCA’, suggests a negligible function of this characteristic in bactericidal effectivity. The implication is that surfaces don’t exhibit excessive hydrophilicity, due to this fact having a comparatively minor affect. The insights from the mannequin help the remark that sharp, elongated nanostructures can disrupt bacterial cells non-selectively, whereas shorter, blunt buildings would possibly necessitate extra exact interactions to beat the defences of various bacterial species, reflecting their adaptation to the ecological niches they inhabit [30].
As well as, we carried out a comparability of the SHAP values for each the XGBoost and MLP algorithms by analyzing them in every case, as illustrated within the accompanying Figs. 8 and 9 and Fig. S4. The consistency of the outcomes throughout these situations underscores the robustness and interpretative functionality of our mannequin.
Regression mannequin constructing

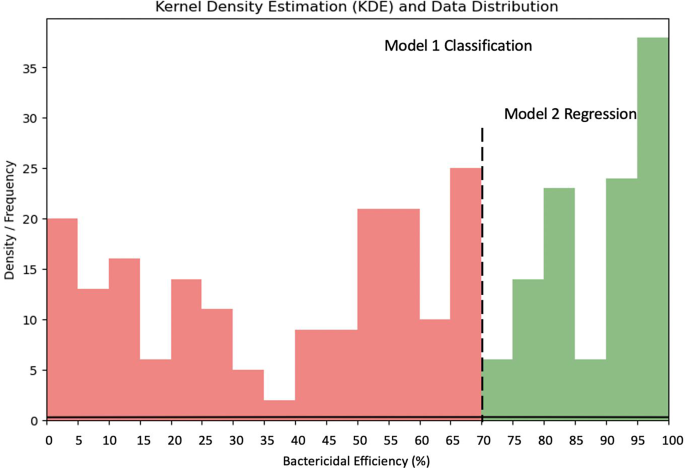

Based mostly on the outcomes of the classification mannequin, a regression mannequin was additional developed for nanostructured surfaces with bactericidal effectivity higher than 70%. Determine 8 reveals the distribution of bactericidal effectivity within the dataset and the vary of information focused by the classification/regression mannequin.
By traversing all of the mannequin parameters, one of the best mixture of parameters is chosen (see Desk S2). The efficiency outcomes are summarised in Fig. 9 and Desk S4. As talked about above, decrease RMSE and MAE values point out higher predictive efficiency, whereas greater (:{R}^{2}) values point out a greater match of the mannequin to the information and a greater total adaptation to the information. Of the 4 fashions, the XGBoost regression mannequin had an excellent efficiency with the bottom RMSE and MAE and the best (:{R}^{2}) (50%). The comparatively low (:{R}^{2}) values noticed within the desk could also be attributed to the restricted quantity of information accessible for evaluation (Figs. 10, 11, and 12).
Sequence of Classification and Regression mannequin that predicts bactericidal effectivity of nanostructured floor. The classification mannequin determines whether or not the nanostructured floor is able to efficient bactericide, i.e., whether or not the bactericidal effectivity is larger than or equal to 70%. The regression mannequin predicts values of bactericidal effectivity for nanostructured surfaces with > 70% bactericidal effectivity

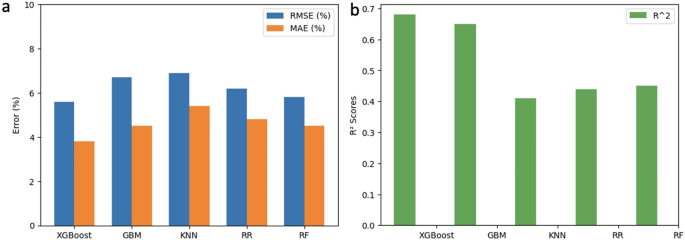

Regression mannequin efficiency evaluated by (a) RMSE, MAE and (b) (:{R}^{2})
The regression mannequin confirmed constant efficiency on each the coaching and take a look at units, with all predictions inside a relative error of ± 20%, apart from one information from the take a look at set (Fig. 10). This demonstrates the mannequin’s capacity to resist overfitting tendencies and enhances its potential for real-world functions.

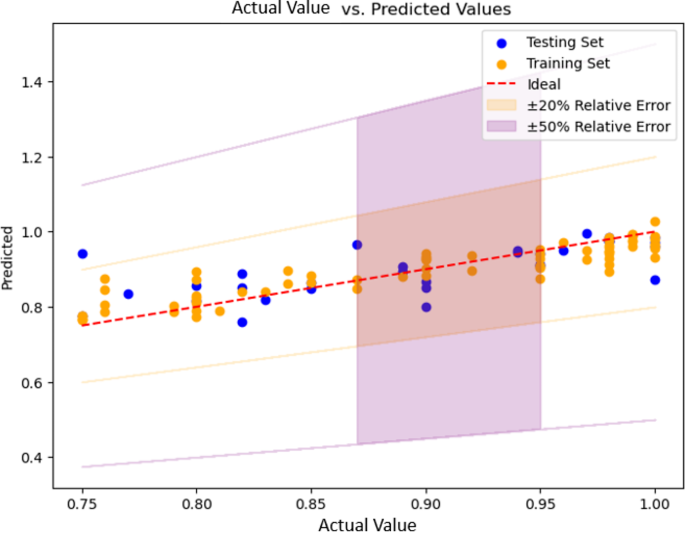

Predictions given by XGBoost mannequin based mostly on the information information within the Database IV. The crimson line reveals good predictions the place the bottom reality values equal to predictions. The colored space signifies the relative error vary (± 20% and ± 50%) for the predictions
